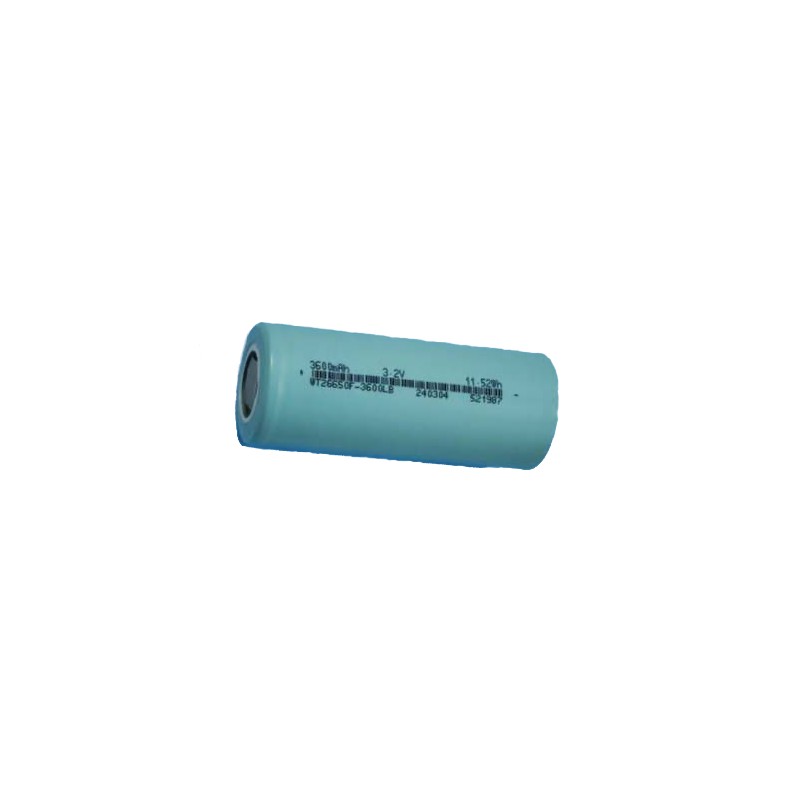

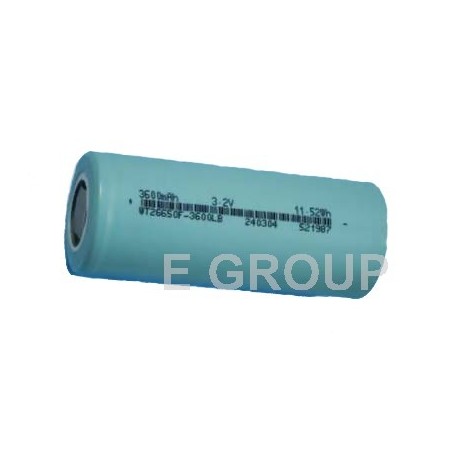

> WT26650F-3600LB
WT26650F-3600LB View larger

WT26650F-3600LB

Widetemp

New product

Widetemp LFP25560-3600LB is one of the widest temperature ranged cells in the industry.
LiFePo4 safe material cell with

  • 3.2V; 3.6Ah ; 26650 Cylindrical
  • -40° to 80°C charge temperature
  • -50° to 60°C discharge temperature
  • 18A maximum discharge

Applications:

  • Drone/UAS
  • Robotics
  • E Mobility
  • Power Tools, etc.

More details

Add to wishlist

More info

Items Specification
Nominal Capacity 3600mAh
Minimum Capacity 3550mAh
ACR ≤30mΩ
Nominal Voltage 3.2V
Charging Cut-off Voltage 3.65V
Charging Method Charge with constant current to cut-off voltage, then with constant
voltage to cut-off current.
Charging Current

Standard Charge Current

-------------------------------

Fast Charge Current

5℃~60℃

-30℃~5℃

-----------

25±2℃

1800mA (0.5C)

720mA (0.2C)

-----------------

10.8A (3.0C)
Discharge Current

Standard Discharge Current

-------------------------------

Fast Discharge Current

-50℃~-40℃

-40℃~60℃

-------------

25±2℃

720mA (0.2C)

1800mA (0.5C)

-----------------

18.0A (5.0C)
Discharge Cut-off Voltage 2.0 V
Operating Temperature

Charge

-----------

Discharge

-40℃~80℃

------------

-50℃~80℃
Storage Temperature 3 Months -20℃~25℃
