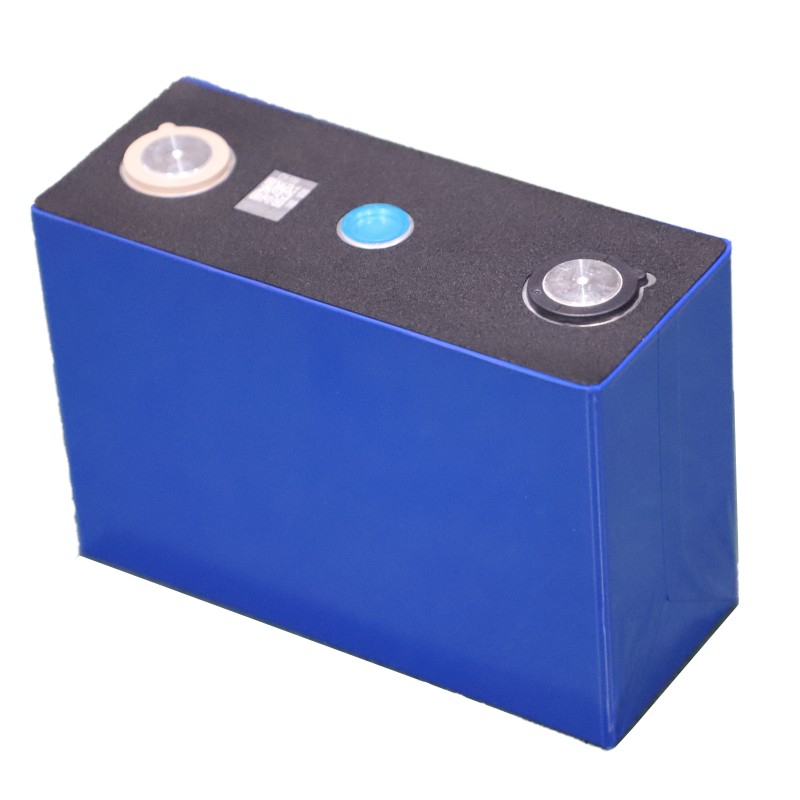

SIB 50160118-NFPP-50Ah Sodium Ion Battery
New product
Rating
More info
| Nominal capacity | 50Ah |
25±2℃, 0.5C discharge current |
| Operating voltage | 1.5V~3.50V | |
| Platform voltage | 2.85V |
25±2℃, 0.5C discharge current |
| Impedance(1KHz) | ≤0.50mΩ |
25±2℃, BOL,38%SOC |
| Shipping status |
38%SOC |
|
| Operating Temperature (Charging) |
0℃ < T ≤ 15℃ 15℃ < T ≤ 45℃ 45℃ < T ≤ 55℃ |
0.2C CC to 80%SOC， CV to 0.05C 0.5C CC to 100%SOC , CV to 0.05C 0.5C CC to 80%SOC, CV to 0.05C |
| Operating temperature (discharge) |
-40℃ ≤ T <-20℃ -20℃ ≤ T <0℃ 0℃ ≤ T <15℃ 15℃ ≤ T <30℃ 30℃ ≤ T <45℃ 45℃ ≤ T <60℃ |
0.5C 1C 1.5C 2C 1C 0.5C |
|
Weight |
1.65±0.15kg | |
|
Temperature rising |
≤8℃ | 25±2℃, 0.5C discharge/charge current |
| Standard charge current | 0.5C |
25±2℃ |
| Standard charge voltage | Cell max. voltage 3.5V |
25±2℃ |
| Maximum charge current (continuous) | 1C |
25±2℃ |
|
Standard |
0.5C CC to 3.50V, CV 0.05C | |
|
Standard |
25±2℃ | |
|
Absolute charge temperature (Cell temperature) |
0~55℃ | Stop charging once cell temperature is out of this range regardless of the charging mode adopted. |
|
Absolute charge voltage |
Max. voltage 3.50V |
Stop charging once voltage exceeds this |
|
Standard discharge current |
0.5C | 25±2℃ |
| Maximum discharge current (continuous) | 5.0C | |
|
Discharge cut-off voltage |
1.5V | |
|
Standard discharge temperature |
25±2℃ | |
|
Absolute discharge temperature (Cell Temperature) |
-40~60℃ | Stop discharging once cell temperature is out of this range regardless of the discharging mode adopted. |
