S40140RL-15Ah Sodium Ion Battery
New product

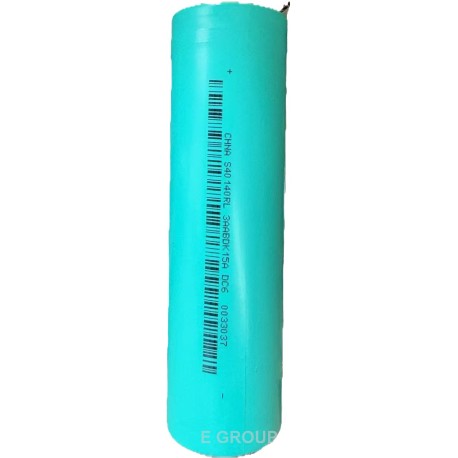

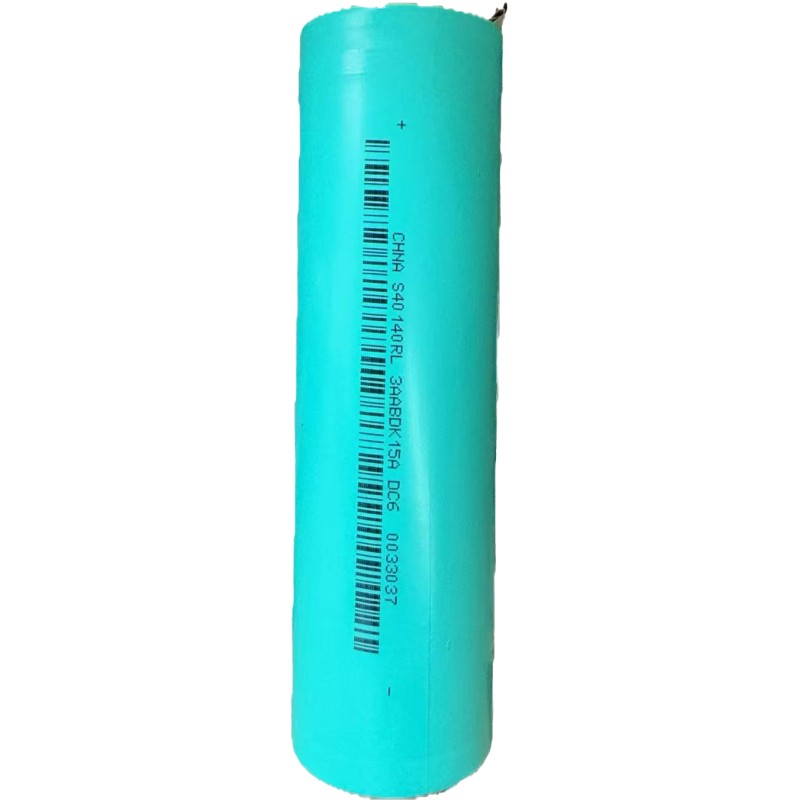

The S40140RL-15Ah is a high-capacity cylindrical sodium-ion cell with a nominal voltage of 3.0V and a rated capacity of 15Ah, delivering 45Wh of total energy. It supports a maximum charge current of 45A and can discharge at up to 75A, making it suitable for high-power applications. The cell weighs approximately 390g and features a green cylindrical casing for easy identification.
Rating
More info
| Rated Capacity | 15Ah | Nominal Voltage | 3.0V |
| Limited Charge Voltage | 3.95V | Total Energy | 45Wh |
| Maximum Charge Current | 45A | Standard Charge Current | 7.5A |
| Standard Discharge Current | 7.5A | Charge Cut-off Current | 0.75A |
| Discharge Cut-off Current | 1.5V | Maxiumum Discharge Current | 75A |
| Mass | 390g | Physical Description | Approximate Green Cylinder |
